800 X 1000MM Lightweight Pallet Telescopic Fork Double Deep Mini Skid Pallet Forks

Name: 800 X 1000MM Lightweight Pallet Telescopic Fork Double Deep Mini Skid Pallet Forks
Brand: HUAHENG
Price: 5500 USD

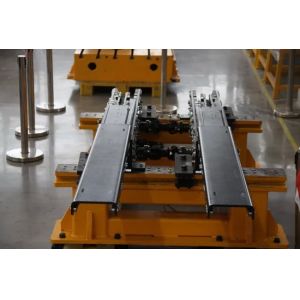

Cheap 800 X 1000MM Lightweight Pallet Telescopic Fork Double Deep Mini Skid Pallet Forks for sale

Certification : ISO, CE

MOQ : 1

Price : 5500

Place of Origin : CHINA

Brand Name : HUAHENG

Model Number : HFTA38x75

Model NO. : HFTA38x75-800*1000

Application : Loading, Forging

Condition : New

Warranty : 1 Year

No-Load Maximum Speed : 0-45m/Min

Maximum Speed at Full Load : 0-30m/Min

No-Load Acceleration : 1m/S^2

Full Load Acceleration : 0.5m/S^2

Color : Red/Black White

Total Fork Height : 576mm

Mounting Height : 189mm

Fw Fork Width : 230mm

Twf Fork Width : 710mm

Transport Package : Wooden Case

Trademark : HUAHENG

Origin : China

HS Code : 8428909090

Production Capacity : 3000

Packaging Details : Wooden box

Delivery Time : 30 workdays

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now

Hfta38X75-800*1000 Lightweight Single Motor with Double Deep Mini Skid Steer Loader Fork

Technical specialties

HFTA38x75 single motor double reach forks are used for automated warehouse storage of light goods such as crates. The fork body is delicate and small, usually used as a single fork, but also can be used as a double fork or multi-fork joint use.

Main components and functions:

Combination top fork: It is made of one top plate and two side plates spliced together, and can be customized with different widths;
High-strength needle roller bearings: customized according to the requirements of telescopic fork industry, with high precision, low resistance, strong radial bearing capacity, high hardness and self-aligning function, wear-resistant and impact-resistant;
Analyzed chain: anti-stretch, high strength, high breaking load, fatigue resistance;
One-piece center fork: made of high-quality steel, machining center one-piece molding, with high precision;
Mechanical limit protection: The telescopic fork is equipped with a mechanical limit inside to prevent over-travel and disengagement;
Drive: AC servo motor with planetary reducer;
No-load maximum speed: 0-45m/min
Maximum speed under full load: 0-30m/min
No-load acceleration: 1m/S²
Full load acceleration: 0.5m/S

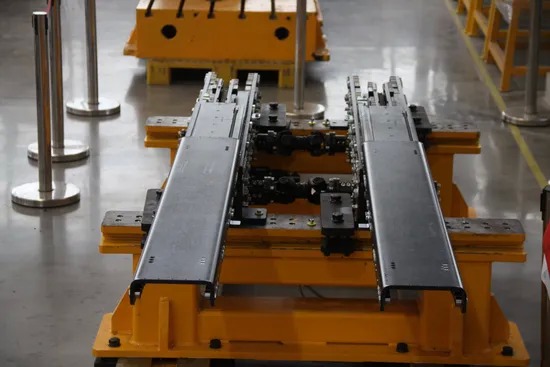

800 X 1000MM Lightweight Pallet Telescopic Fork Double Deep Mini Skid Pallet Forks

Fh/FH Fork thickness (mm)	LS Cargo length (mm)	L Length of fork(mm)	S2 Maximum stroke (safety stroke 30mm)	TH Total fork height (mm)	HF Mounting height(mm)	FW Fork width (mm)	Q Load(KG)	Load Disturbance(mm) ± 10%	No-load disturbance(mm) ± 10%
38/75	600	700	1450+30	284	148	228-600	70	15	≤4
		750	1500+30				90	15
		800	1550+30				100	15
	650	750	1550+30				80	16
		800	1625+30				100	17
		900	1675+30				120	15
	700	800	1650+30				80	16
		850	1700+30				100	16
		900	1750+30				120	20	≤8
	750	850	1750+30				80	18
		900	1825+30				90	21
		950	1850+30				100	22
	800	900	1825+30				85	23
		950	1925+30				90	25
		1000	1950+30				90	26	≤11
	850	950	1925+30				80	25
	900	1000	2000+30				75	26
	1000	1100	2000+30				70	30
	1100	1200	2400+30				60	40
	1200	1300	2650+30				40	50

About us

Changsha Huaheng Robotics System Co., Ltd. is a global engineering company under Huaheng Group, which is committed to the development, design, manufacture and service of intelligent logistics and warehousing and intelligent manufacturing flexible automated production line, and a high and new technology enterprise that provides customers with integrated solutions of intelligent logistics and intelligent manufacturing.

The company has excellent design development and engineering technology team engaged in factory automation logistics industry for many years, after continuous independent research and development and innovation, the company has owned a number of patented technology certificates, the certificate covers intelligent manufacturing production line, intelligent three-dimensional warehouse, software control and so on. In the construction machinery industry for heavy industry enterprises to provide the world's leading outrigger, frame, boom, large-tonnage frame, large-tonnage boom five intelligent robot welding production line; for the world's advanced heavy industry enterprises to provide intelligent logistics large three-dimensional warehouse, marking the heavy industry oversized parts of the intelligent storage has been solved; in the pharmaceutical industry for the pharmaceutical factories to establish a multi-layer intelligent logistics sorting, picking project; in the real estate and construction industry The industry was the first to develop and implement the construction of four climbing frame intelligent robot welding production line to become the industry benchmark.
800 X 1000MM Lightweight Pallet Telescopic Fork Double Deep Mini Skid Pallet Forks

Telescopic forks are the actuators of the stacker cranes for accessing goods. The telescopic forks can be extended and retracted horizontally in order to feed (or remove) goods to and from the two side compartments. Forks generally use three-stage (or four-stage) linear differential telescopic forks, which are composed of cam bearings, slider guide units, power gear units, fork bodies, etc., and are driven by rack and pinion or chain.
