50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision

Certification : ISO, CE

MOQ : 1

Price : 3700

Model Number : HFTA42

Place of Origin : CHINA

Brand Name : HUAHENG

Model NO. : HFTA42-650*800*910

Application : Loading, Forging

Condition : New

Warranty : 1 Year

No-Load Maximum Speed : 0-50m/Min

Maximum Speed at Full Load : 0-30m/Min

No-Load Acceleration : 1m/S2

Full Load Acceleration : 2m/S2

Transport Package : Wooden Case

Specification : 800-900-950

Trademark : HUAHENG

Origin : China

HS Code : 8428909090

Production Capacity : 3000

Packaging Details : Wooden box

Delivery Time : 30 workdays

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now

Efficiency Redefined: Huaheng's Telescopic Forklifts Lead with Superior Load Capacity and Precision Handling Efficiency

Product Description

The HFTA42 single-motor, single-deep forks are used for automated warehouse storage of light goods such as crates. The fork body is delicate and small, usually used as a single fork, but also can be used as a double fork or multi-fork joint use.

Main components and functions:
  1. Combination top fork: It is made of one top plate and two side plates spliced together, and can be customized with different widths;
  2. High-strength needle roller bearings: customized according to the requirements of telescopic fork industry, with high precision, low resistance, strong radial bearing capacity, high hardness and self-aligning function, wear-resistant and impact-resistant;
  3. Analyzed chain: anti-stretch, high strength, high breaking load, fatigue resistance;
  4. One-piece center fork: made of high-quality steel, machining center one-piece molding, with high precision;
  5. Mechanical Limit Protection: The telescopic fork is equipped with a mechanical limit inside to prevent it from being dislodged over the stroke;
  6. Drive: AC servo motor with planetary reducer;
  7. No-load maximum speed: 0-50m/min
  8. Maximum speed at full load: 0-30m/min
  9. No-load acceleration: 1m/S2
  10. Full load acceleration: 2m/S2
50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision

FH Fork thickness (mm) LS Cargo length (mm) L Length of fork(mm) S1 Maximum stroke (safety stroke 30mm) TH
Total fork height
(mm)		 HF
Mounting height(mm)
FW Fork width (mm)
Q Load
(KG)		 Load Disturbance(mm)
±
10%		 No-load disturbance(mm)
±
10%










42		 600 700 750+30









228









73









183-600		 120 7



≤4
750 860+30 120 9

650		 700 810+30 120 8
750 860+30 120 10
800 850+30 120 8
910+30 120 10

700		 700 750+30 120 11
750 860+30 120 9
800 850+30 120 9
910+30 120 11



750		 750 850+30 120 9



≤5
860+30 120 10
800 850+30 120 10
910+30 120 12
900 950+30 120 10
1010+30 120 13

800		 800 910+30 120 12
900 950+30 120 12
1010+30 120 14

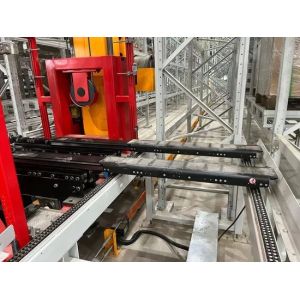

Detailed Photos

50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision
50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision
50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision
50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision

Company Profile

Changsha Huaheng Robotics System Co., Ltd. is a global engineering company under Huaheng Group, which is committed to the development, design, manufacture and service of intelligent logistics and warehousing and intelligent manufacturing flexible automated production line, and a high and new technology enterprise that provides customers with integrated solutions of intelligent logistics and intelligent manufacturing.

50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision

The company has excellent design development and engineering technology team engaged in factory automation logistics industry for many years, after continuous independent research and development and innovation, the company has owned a number of patented technology certificates, the certificate covers intelligent manufacturing production line, intelligent three-dimensional warehouse, software control and so on. In the construction machinery industry for heavy industry enterprises to provide the world's leading outrigger, frame, boom, large-tonnage frame, large-tonnage boom five intelligent robot welding production line; for the world's advanced heavy industry enterprises to provide intelligent logistics large three-dimensional warehouse, marking the heavy industry oversized parts of the intelligent storage has been solved; in the pharmaceutical industry for the pharmaceutical factories to establish a multi-layer intelligent logistics sorting, picking project; in the real estate and construction industry The industry was the first to develop and implement the construction of four climbing frame intelligent robot welding production line to become the industry benchmark.

50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision

Telescopic forks are the actuators of the stacker cranes for accessing goods. The telescopic forks can be extended and retracted horizontally in order to feed (or remove) goods to and from the two side compartments. Forks generally use three-stage (or four-stage) linear differential telescopic forks, which are composed of cam bearings, slider guide units, power gear units, fork bodies, etc., and are driven by rack and pinion or chain.

50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision50m/Min Redefined Telescopic Bin Telescopic Fork Forklifts Lead Precision
